SL4

The most advanced, multi-award winning, dual USB interface for DJs

The ultimate portable DVS solution

Get connected

Connect up to four turntables and media players on individual assignable channels using just a single USB cable.

Maximum flexibility

Two USB 2.0 ports for seamless DJ changeover and back-to-back performances with 10 audio inputs/outputs.

Rugged build, quality sound

Rugged die-cast design to survive the most demanding tour DJ with 24-bit audio quality and switchable 48/96 kHz sample rate.

Flexible connections

10-in, 10-out USB sound card to connect with any software supporting ASIO or Core Audio.

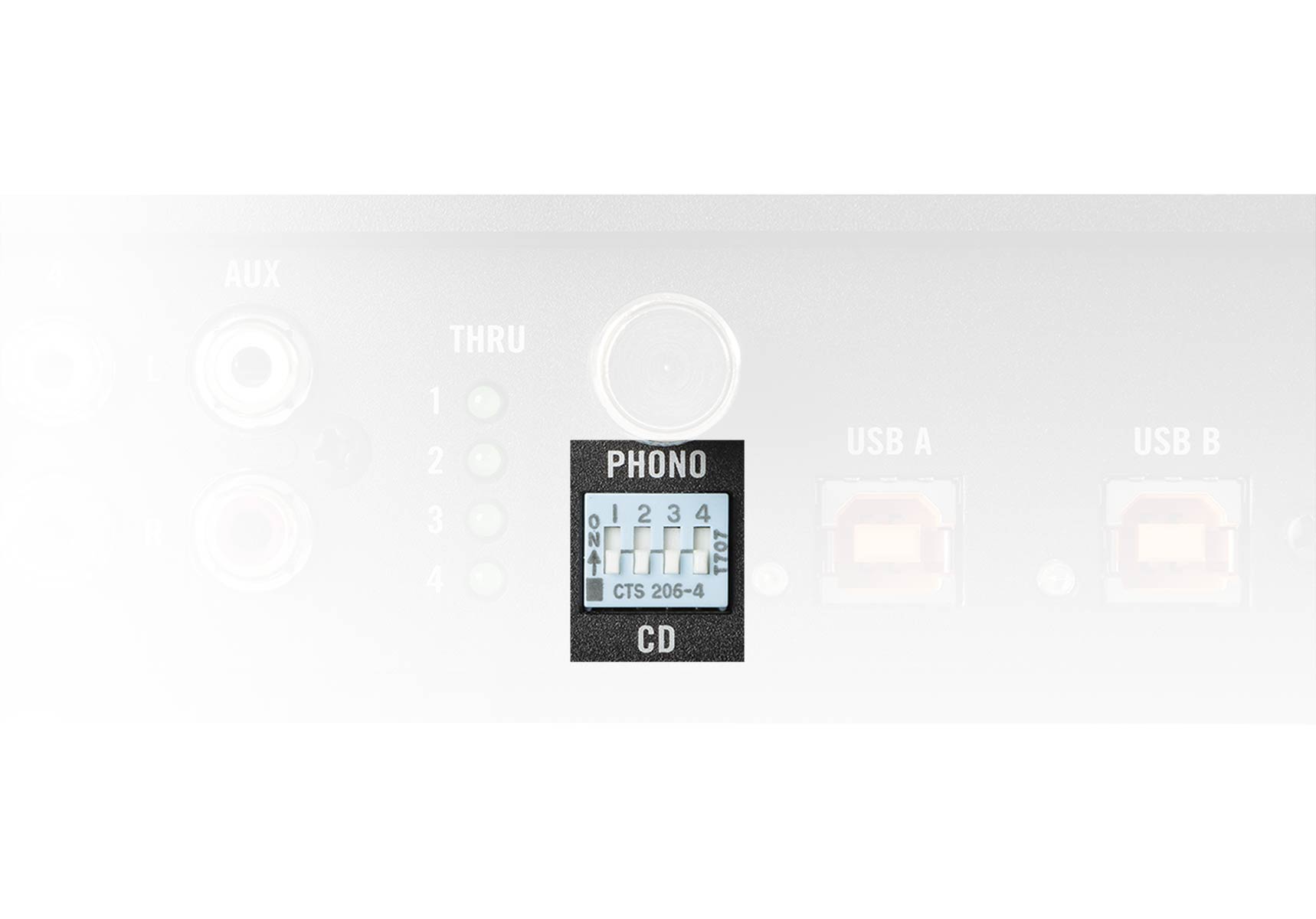

Take control
Four software switchable analog thru connections for regular vinyl or line input playback.

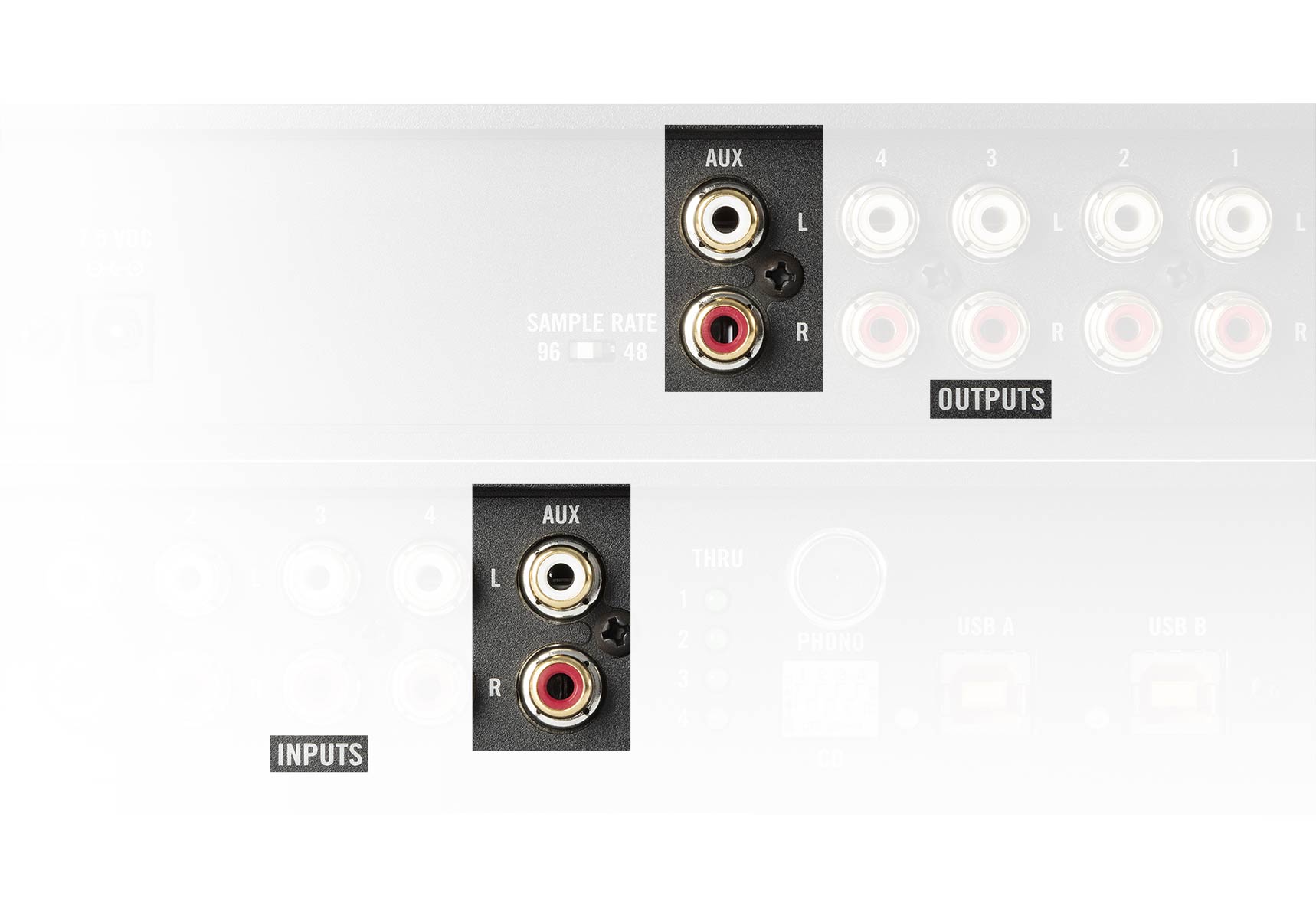

Sample or record
Aux Output assignable to the SP6 Sample Player. Aux Input for recording directly into Serato.

SL4 features

  • Top
  • Front
  • Back

Tech Specs

USB Audio
  • Interface: USB 2.0 High Speed
  • Power Requirements: 500mA, 5.0 Volts
  • Audio Channels: Ten Record and Ten Playback
External Power Supply
  • 1060 mA, 7.5 Volts
Converters
  • 24-bit / 48 kHz or 96 kHz sample rate switchable
DACs
  • Dynamic Range: 104.5 dB, A-weighted
ADCs
  • Dynamic Range: 103 dB, A-weighted
Dynamic Range
  • 101 dB A-weighted analog in to analog out
Frequency Response
  • -0.6 dB @ 20 Hz, -0.03 dB @ 20 kHz
THD+N
  • 0.007% at 1 kHz, 20 Hz to 20 kHz BW
Analog Inputs
  • Inputs 1-4 individually Phono / Line switchable
  • Aux Input: Line-Level only
  • Gain: Unity
  • Maximum Input / Output: 3 Vrms @ 1 kHz
  • Switched Phono Input Max: 70 mV rms @ 1 kHz
Unit Size
  • 7.25˝ x 5˝ x 1.7˝ (18.4 x 12.6 x 4.3 cm)
Shipping Size
  • 14˝ x 14˝ x 4˝ (36 x 36 x 10 cm)
  • Weight: 6 pounds (3 kg)
