MP2015

Advanced Sonic Control Rotary Mixer

Ultimate legacy mixing experience

Born from a legacy of rotary club mixers, the MP2015's analog soul and digital heart represents the next evolution for advanced sonic craftsmanship in the booth.
Superior build

Robust 4-channel Rotary Mixer with solid chassis and classic wooden design, pro XLR and TRS Outputs and AKM premium performance Audio 4 Pro delta sigma modulator converters.

Advanced sonic control

Craft and mould your mix with powerful 3band Isolator EQ's with fully adjustable crossover points. Command frequency control with the variable resonance parameter sweepable filter control.

No compromise

MP2015 is the best mixer produced by RANE - ever. There are no compromises in the design. The best sound, the best features, the best feel, and the ultimate in reliability and durability. Serato DJ Pro, Traktor & Virtual DJ compatible.

Discover the MP2015

The ultimate Serato performance mixer for professional DJs

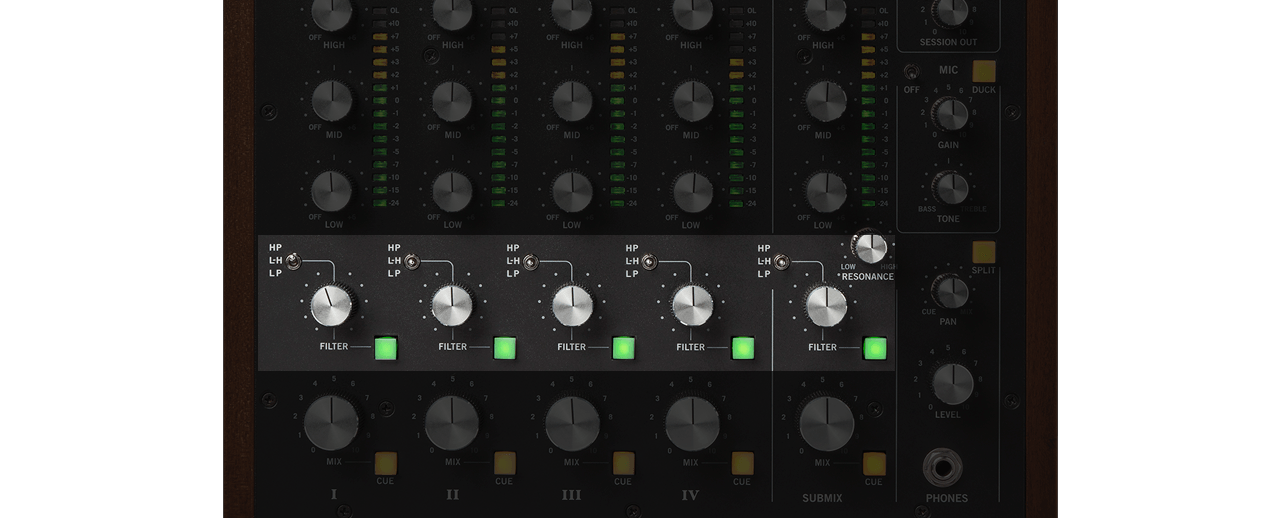

Sweep Filters

Each of the four input channels and the Submix channel features a unique three-position toggle selector switch. Choose between LP, HP or L-H combo. All have steep 24dB/octave (4th-order) slopes and are sweepable.

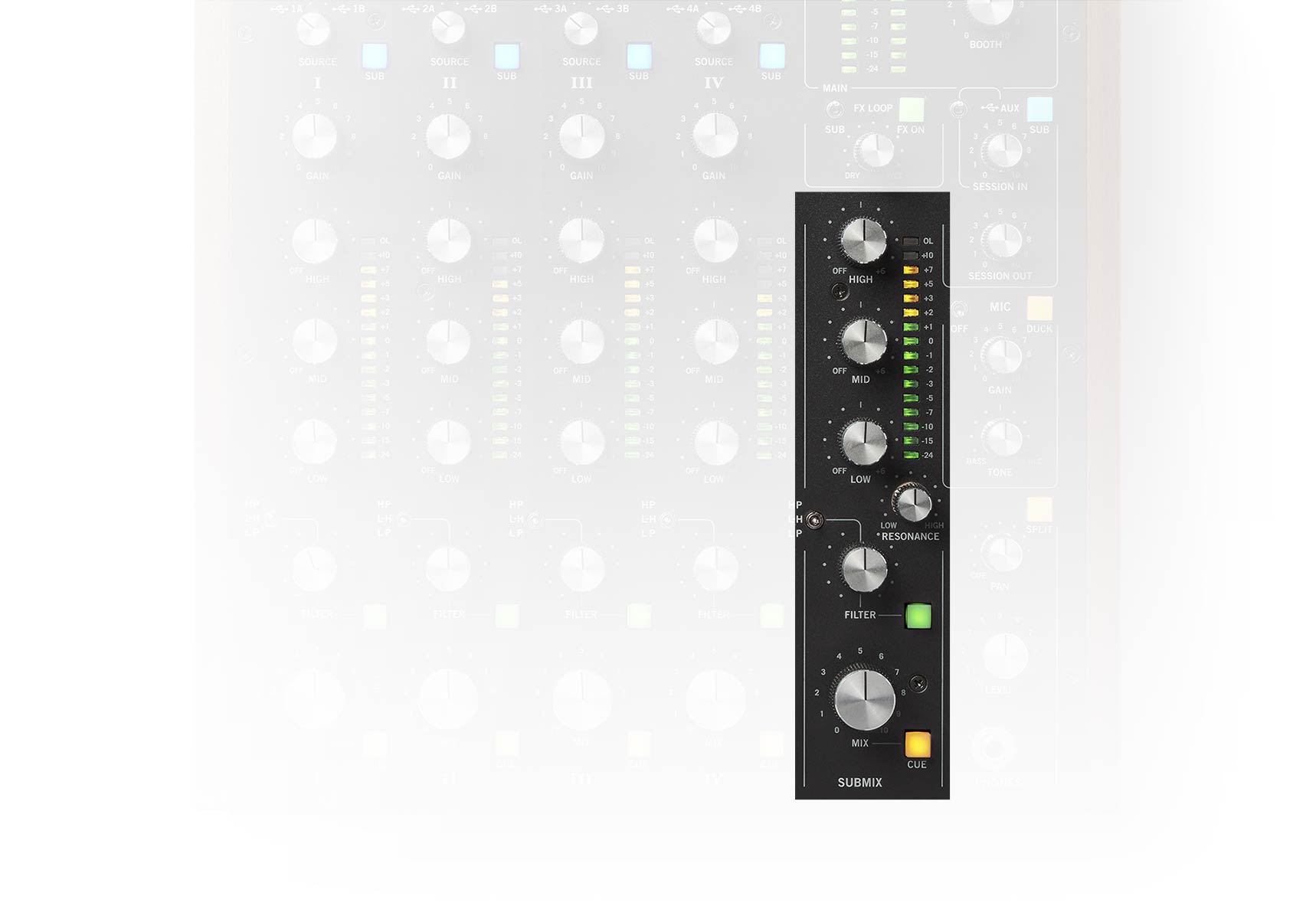

Submix
This unique input channel provides grouping for any number of inputs for easy multi-source mixing. Additionally, this becomes another input to make a 5 channel mixer.
3-Band Full-Cut Tone Controls
All input channels and the Submix channel have exceptional three-band tone controls. These are 12 dB/octave (2ndorder) Linkwitz- Riley, full-cut filters (kill) with selectable crossover points of 150Hz/6.0 kHz or 300Hz/3.0kHz.

MP2015 features

  • Top
  • Front
  • Back

Tech Specs

Analog Inputs
  • Four Analog Deck Inputs: Each is Phono-CD-S/PDIF switchable
    • ....Analog Stereo RCA jacks: Phono (RIAA) or CD (line-level)
      • ........Phono Response: RIAA +0.1/-0.2 dB, Gain: 31 dB at 1 kHz, Butterworth 3rd-order Infrasonic (rumble) and 2nd-order Low-pass Filters
      • ........Max Phono Input: 126 mV
      • ........Max Line Input: 4 Vrms, all unbalanced inputs
  • Analog Aux Input: Line Level, stereo unbalanced RCA jacks
  • Session Analog Input: Line Level, stereo unbalanced RCA jacks
S/PDIF
  • Deck Input S/PDIF RCA jacks: Input 16-bit or 24-bit PCM only
    • ........Dynamic range of 128 dB with ultra low jitter and 16:1 SRC conversion range.
  • Session S/PDIF Input / Output: RCA jacks (Dynamic range of 128 dB)
    • ....Input 16-bit or 24-bit PCM only, sample Rate 16 kHz to 144 kHz
ADCs
  • 24-bit @ 44.1, 48, or 96 kHz
DACs
  • 24-bit @ 44.1, 48, or 96 kHz
Dynamic Range
  • Digital/USB Input to Line Output: 116 dB A-weighted
  • Line Input to Digital/USB Output: 116 dB A-weighted
  • Line Input to Line Output: 113 dB A-weighted
Digital Signal Processing
  • 32-bit floating point.
USB Audio
  • Seven stereo record, five stereo playback, each port, 24-bit PCM @ 44.1 kHz, 48 kHz or 96 kHz.
    • Class-compliant, no driver needed for Mac OS X*.
    • ASIO driver provided for Windows 7 and higher.
  • *Firmware update required for support on macOS 10.12 Sierra and higher.
FlexFX
  • Stereo unbalanced ¼" TS (tip-sleeve) jacks, Send and Return.
Mic Input
  • Balanced ¼" TRS & XLR combo jack with Mic / Line switch and +48V Phantom Power switch.
Line Outputs
  • Main is on balanced XLR jacks
  • Booth is on balanced TRS 1/4" jacks
  • Session is on unbalanced RCA line level or S/PDIF digital RCA jacks
  • FlexFX Loop Send is unbalanced RCA jacks.
    • ....Frequency Response: 20 Hz to 20 kHz ±0.25 dB
    • ....Unbalanced jacks (Session & FlexFX): Max 4 Vrms
    • ....Balanced jacks (Main & Booth): Max 8 Vrms
THD+N
  • 0.0009%
Internal Universal Power Supply
  • 100 to 240 VAC, Max 20 W, 50 Hz to 60 Hz.
Unit Size
  • 35.5 cm x 33.3 cm x 8.3 cm [14˝ H x 13.1˝ W x 4.3˝ D (includes knobs)]
  • Weight: 5.7 kg or 12.6 lb.
Shipping Size
  • 19.7 cm x 38.1 cm x 49 cm [7.75˝ H x 15˝ W x 19.25˝ D]
  • Weight: 7 kg or 15 lb.
