RANE SEVENTY A-TRAK SIGNATURE EDITION DJ Battle Mixer

RANE SEVENTY A-TRAK

DJ Battle Mixer

Pushing the Boundaries of
Turntablist Performance

Sonic innovation in a battle-tested frame

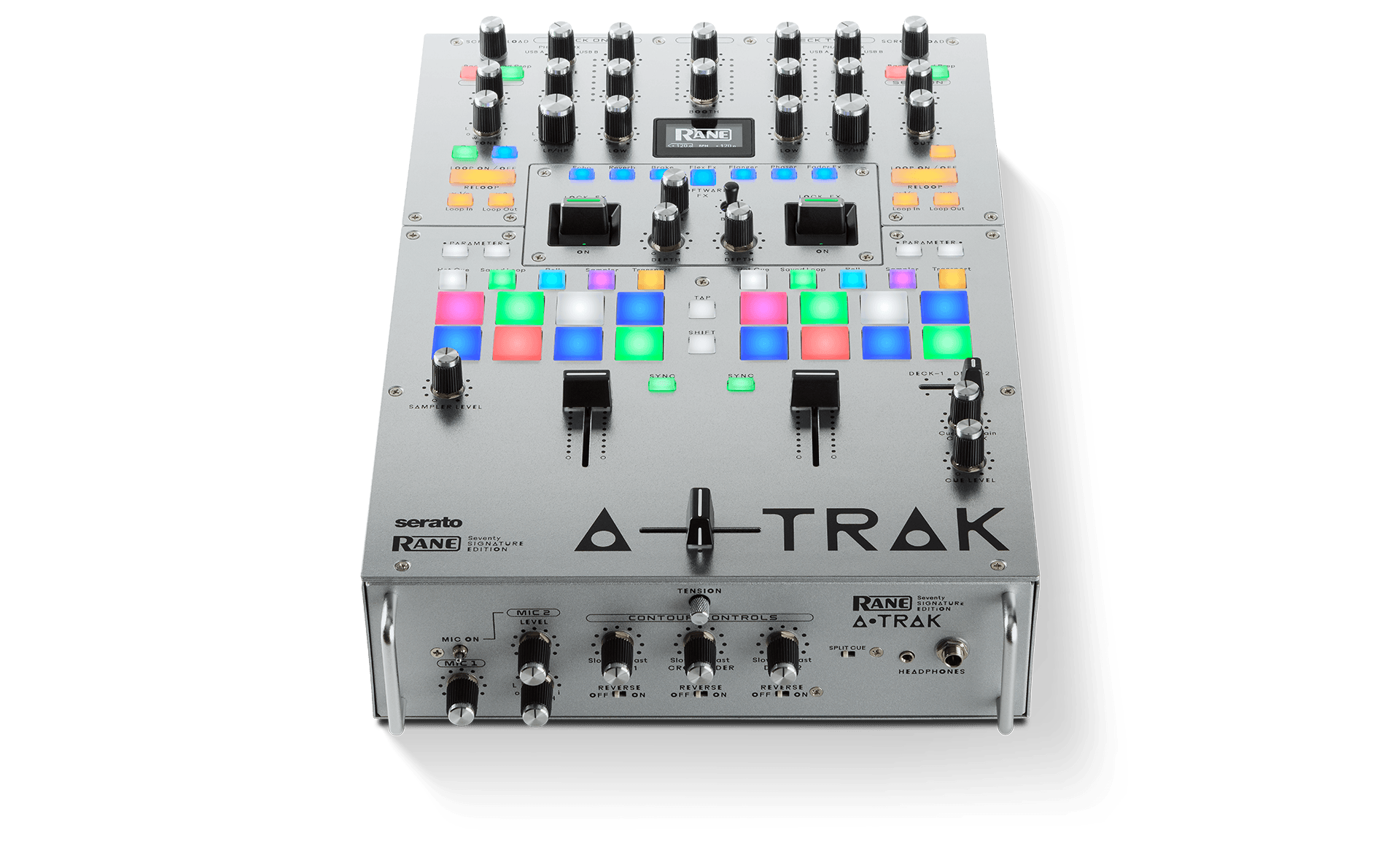

Top angle view of SEVENTY A-TRAK SIGNATURE EDITION DJ Battle Mixer
Stunning Custom Design

The exterior of the SEVENTY A-TRAK SIGNATURE EDITION features a stunning silver finish than gleams beneath the aluminum-capped rotary-styled knobs and encoders.

Enhanced Capabilities

Fader FX transforms the channel volume faders into linear controllers for performance effects like Filter, Roll, Pitch, Ring Modulator, and four types of Oscillators.

Sonic Innovation

The sound curve and frequency response of the mixer was handcrafted by A-Trak himself, increasing the depth of the low end to ensure that the high-quality audio matches his signature sound.

Discover the SEVENTY A-TRAK SIGNATURE EDITION

A-Trak’s vision for the future of turntablist performance

Performance-Enhancing Fader-FX

Effects

Filter

Roll

Pitch

Ring Modulator

Tone Generators

Sine

Sawtooth

Square

Triangle

With Fader FX, the SEVENTY A-TRAK SIGNATURE EDITION DJ mixer's upfaders are transformed into linear controllers for performance effects like Filter, Roll, Pitch, Ring Modulator, and four types of Oscillators. DJs can dive into the settings of these Fader FX options to change root keys, octaves, and more.

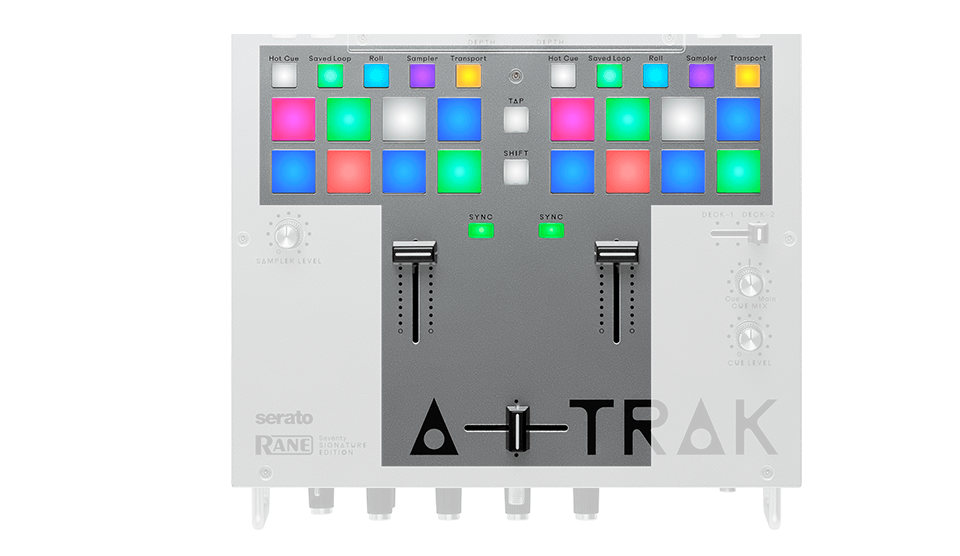

Built For Battle

Built upon the solid foundation of the SEVENTY, the SEVENTY A-TRAK SIGNATURE EDITION features the same solid-steel construction, 3 x MAG FOUR faders, and MPC-style performance pads.

RANE ONE – With all the pro-connections you need, the RANE ONE gives multiple connectivity for the ultimate in flexibility
Custom Serato Sticker Lock Vinyl

The SEVENTY A-TRAK SIGNATURE EDITION includes 10" Serato Sticker Lock Control Vinyl with custom A-Trak and Fools Gold stickers.

RANE ONE includes the MAG FOUR crossfader. Our lightest and smoothest fader ever

Experience the SEVENTY A-TRAK SIGNATURE EDITION

A-Trak’s performance with his signature RANE mixer

SEVENTY A-TRAK SIGNATURE EDITION Features

  • Top
  • Front
  • Back

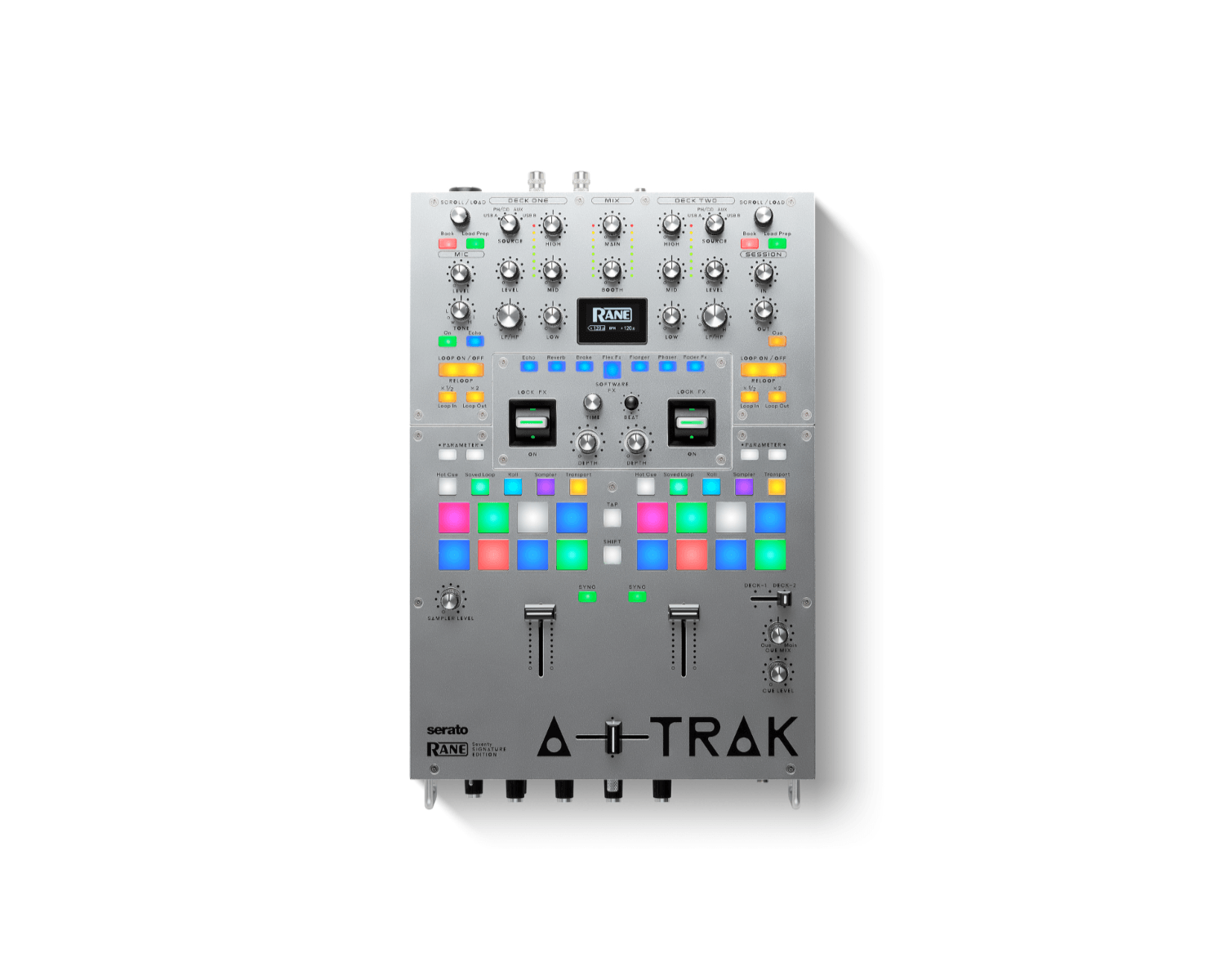

Seventy A-Trak top view

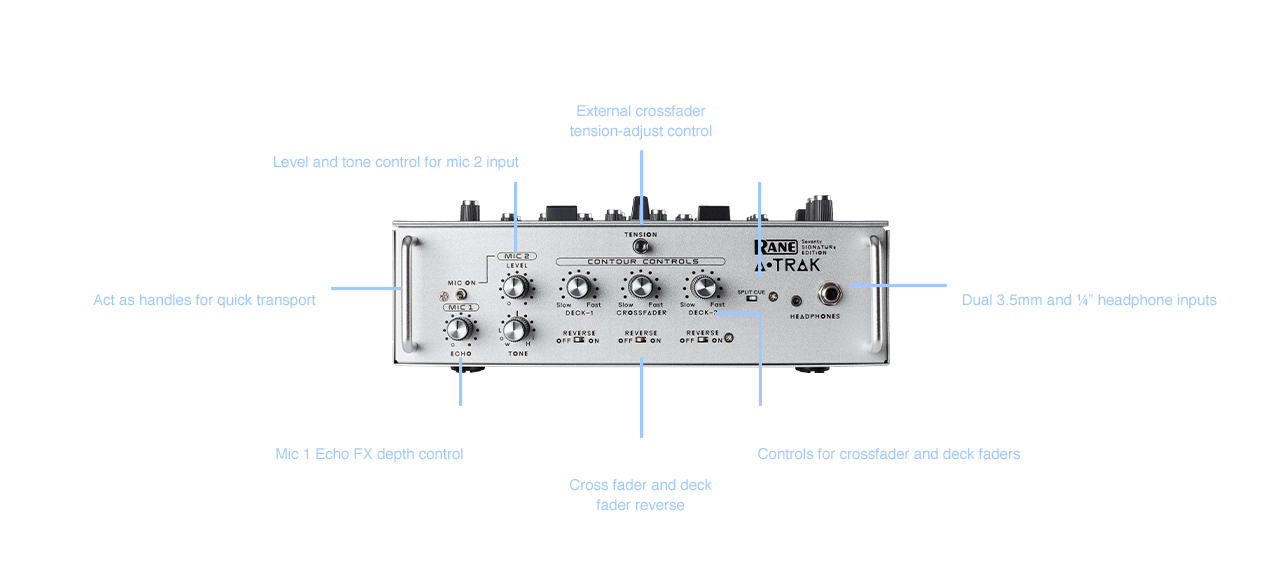

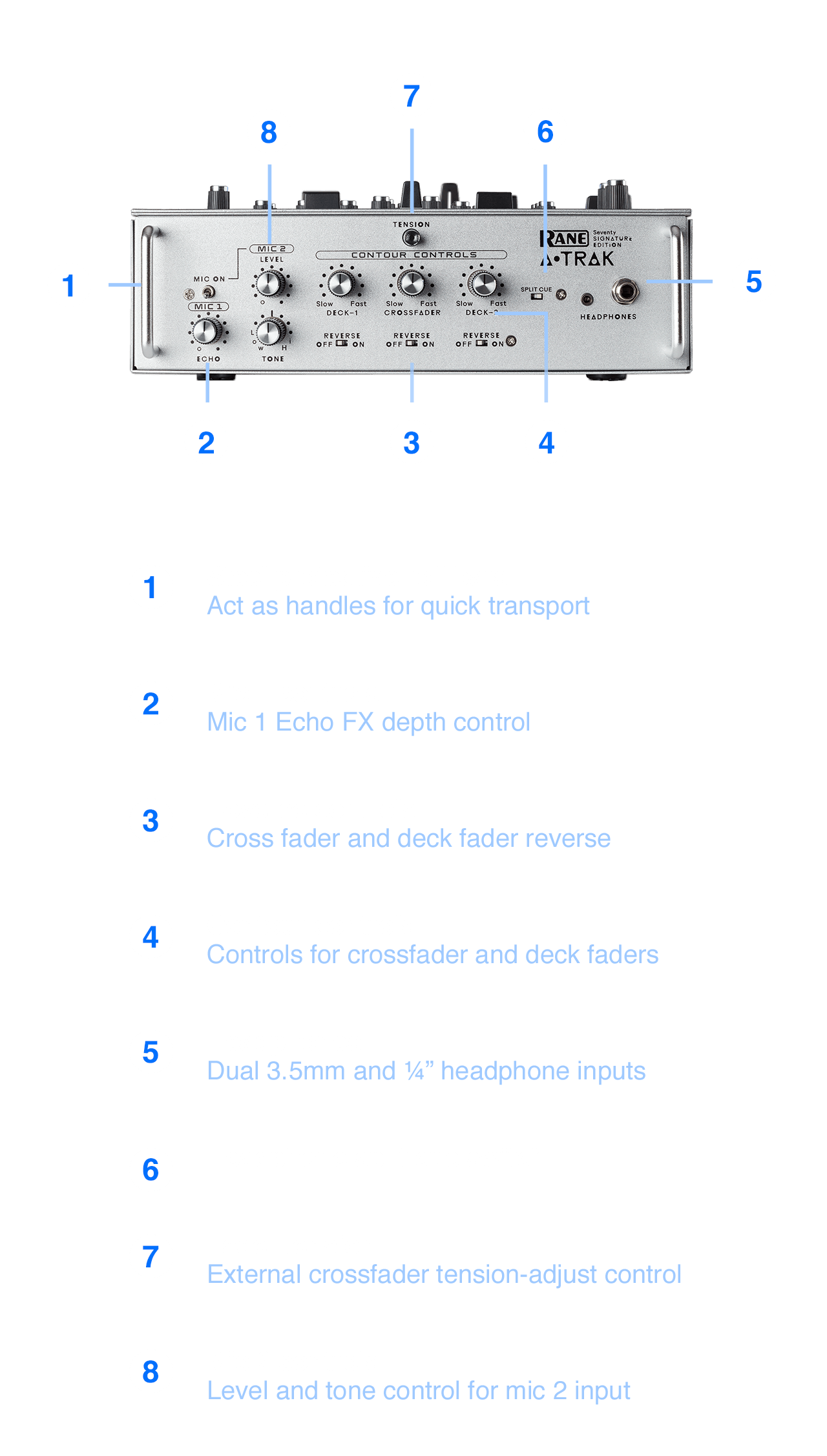

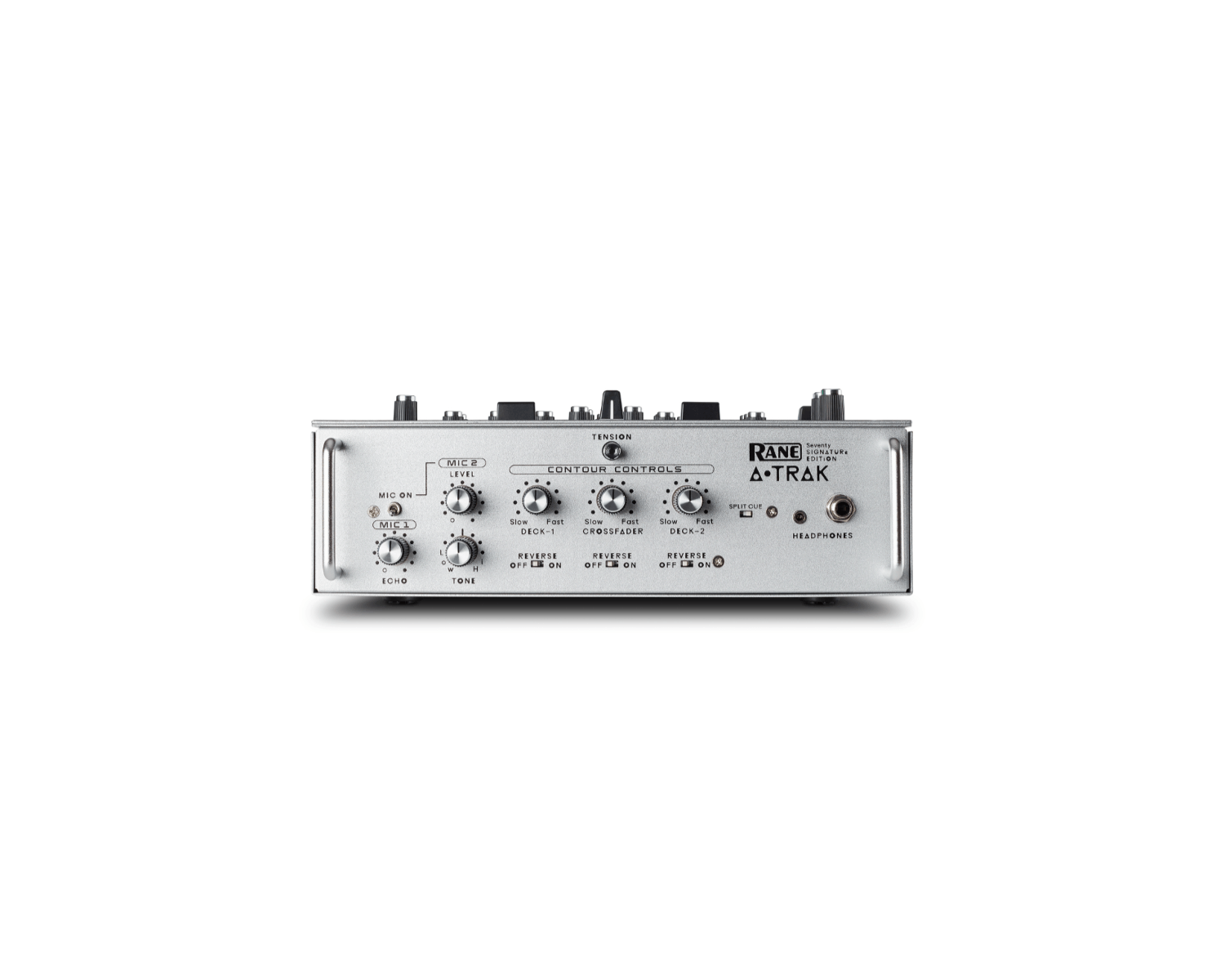

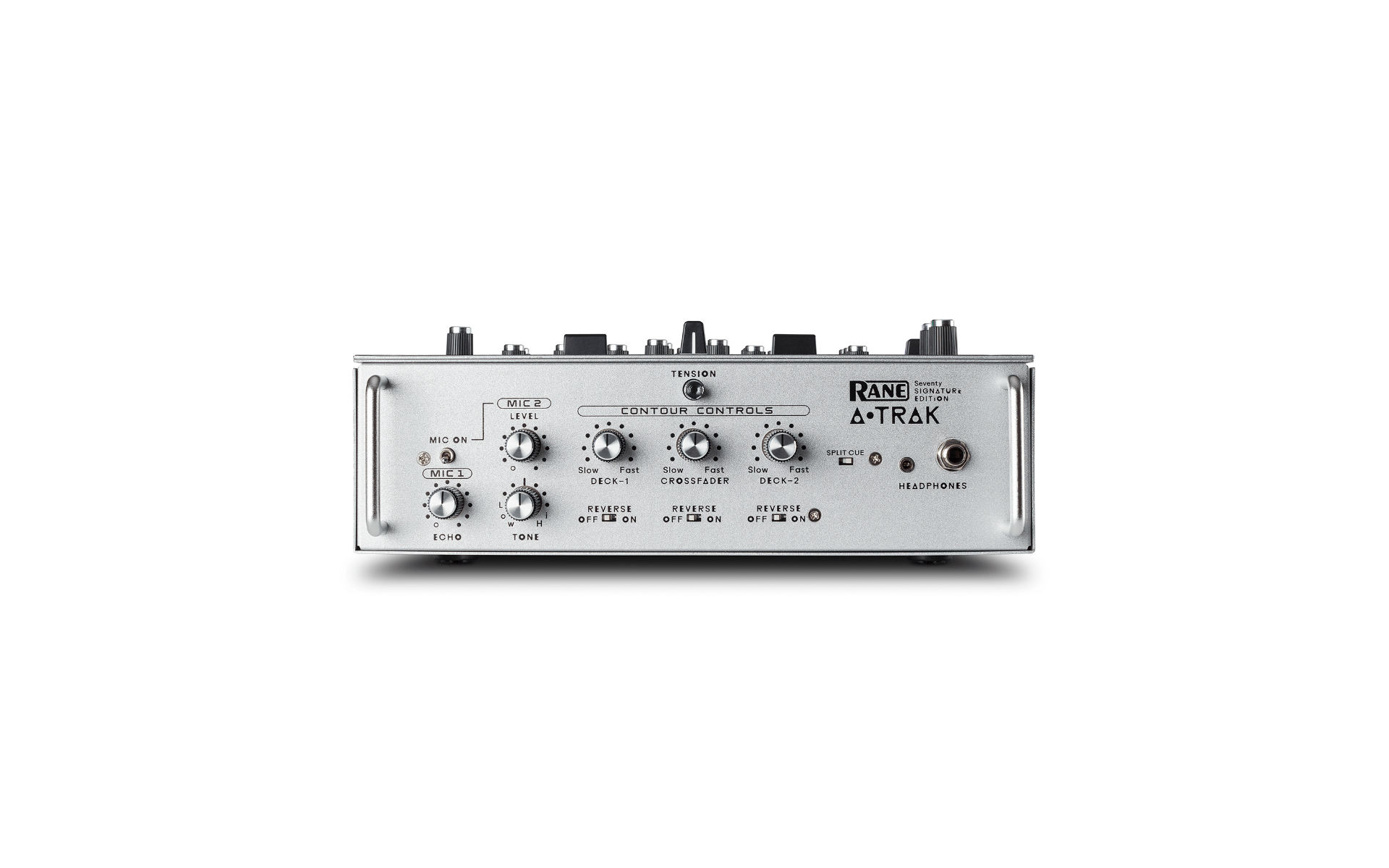

Seventy A-Trak front view

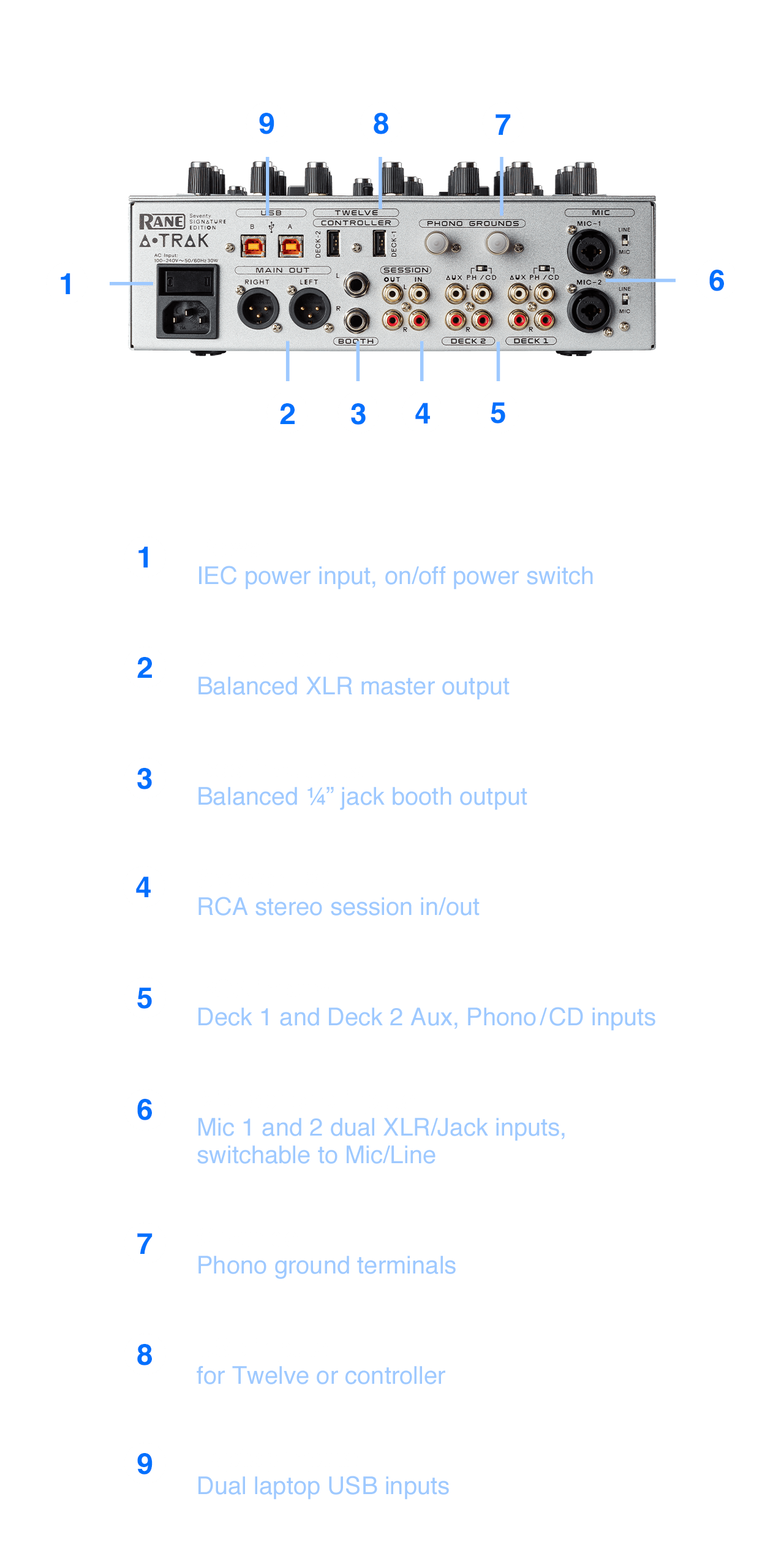

Seventy A-Trak back view

Tech Specs

Digital Audio
Converters
  • AKM High Definition Audio; 24-bit PCM, 48 kHz
Digital Signal Processing
  • 32-bit, floating point, double precision
Dynamic Range
(A-weighted, unity gain)
  • ADC
  • DAC
  • CD Input to Analog Output
  • CD Input to USB Output
  • USB Input to Analog Output
  • 114 dB
  • 114 dB
  • 114 dB
  • 114 dB
  • 114 dB
Inputs
Microphone 1/2
(Combo XLR/1/4" [6.35 mm] TRS, Mic/Line switchable)
  • Analog Gain
  • Maximum Input
  • Gain Trim
  • 30 dB (Mic), 4.75 dB (Line)
  • 0.126 Vrms (Mic), 2.3 Vrms (Line)
  • Off to +20 dB (unity at center)
Aux Inputs 1/2
(RCA stereo pairs)
  • Maximum Input
  • Dynamic Range (A-weighted)
  • 4 Vrms
  • 114 dB
CD/Phono Inputs 1/2
(RCA stereo pairs, switchable)
  • CD
  • Maximum Input
  • Dynamic Range (A-weighted)
  • Phono
  • RIAA Curve
  • Gain (@ 1 kHz)
  • Maximum Input (@ 1 kHz)
  • Line
  • 4 Vrms
  • 114 dB
  • RIAA
  • +0.1/-0.2 dB
  • 30 dB
  • 126 mV
Session Input
(RCA stereo pair)
  • Maximum Input
  • Dynamic Range (A-weighted)
  • 4 Vrms
  • 114 dB
Outputs
Main Outputs
(XLR)
  • Frequency Response
  • Maximum Output
  • THD+N (@ 1 kHz, 4 Vrms)
  • 20 Hz to 20 kHz (± 0.2 dB)
  • 8 Vrms
  • 0.002%
Booth Outputs
(1/4"/6.35 mm TRS)
  • Frequency Response
  • Maximum Output
  • THD+N (@ 1 kHz, 4 Vrms)
  • 20 Hz to 20 kHz (± 0.2 dB)
  • 8 Vrms
  • 0.002%
Session Outputs
(RCA stereo pair)
  • Frequency Response
  • Maximum Output
  • THD+N (@ 1 kHz, 2 Vrms)
  • 20 Hz to 20 kHz (± 0.2 dB)
  • 4 Vrms
  • 0.002%
Headphone Outputs
(1/4"/6.35 mm and 1/8"/3.5 mm TRS)
  • Maximum Output Voltage
  • THD+N (@ 1 kHz, 2 Vrms)
  • Output Power
  • Controls
  • 4 V (no load)
  • 0.003%
  • 96 mW (50 ohms)
  • On/Off muting
General
Display
  • 1.6” OLED (diagonal)
Pads
  • (16) velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)
Faders
  • (3) MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader)
Connectors
  • (2) XLR outputs (Main)
  • (2) 1/4” (6.35 mm) TRS outputs (Booth)
  • (4) RCA stereo input pairs (Deck 1–2)
  • (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
  • (1) RCA stereo input pair (Session)
  • (1) RCA stereo output pair (Session)
  • (1) 1/4” (6.35 mm) TRS output (Headphones)
  • (1) 1/8” (3.5 mm) TRS output (Headphones)
  • (2) USB Type-A ports (Deck 1–2 USB Controllers)
  • (2) USB Type-B ports
  • (1) IEC power cable input
Power
  • Connection: IEC
  • Voltage: 100–240 V, 50/60 Hz
  • Consumption: 30 W
Dimensions
(width x depth x height)
  • 11.2” x 17.5” x 4.13”
  • 285 x 445 x 105 mm
Weight
  • 12.3 lbs.
  • 5.6 kg

Specifications are subject to change without notice.

Media Gallery

The RANE SEVENTY A-TRAK SIGNATURE EDITION mixer with Fader FX is A-Trak's vision for the future of turntablist performance.
